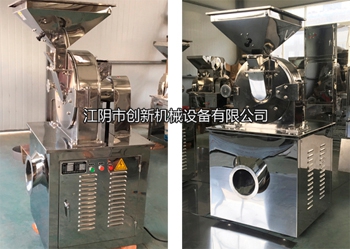

WF-B multifunctional pulverizer

Details：

Main Uses:

This machine is mainly used for weak current substances and high temperature resistant substances such as chemical industry, medicine (traditional Chinese medicine), food, spices, resin powder, coating powder, etc.

Working Principle:
This unit uses the relative movement between the movable toothed disc and the fixed toothed disc to crush the materials through the impact, friction and impact between the toothed discs. The crushed materials automatically enter the collection bag under the action of rotating centrifugal force, and dust is filtered and recovered by the dust collection box through a cloth bag, thus improving the utilization rate of the materials and reducing the enterprise cost.

Technical Parameters:

Model	20	30	40
Capacity (kg)	20-150	30-300	40-800
Spindle speed (r / min)	5800	4500	3800
Feed size (mm)	6	10	12
Fineness of grinding (mm)	12-120 mesh	12-120 mesh	12-120 mesh
Motor Power (kw)	3	5.5	7.5
Weight (kg)	200	320	550
